ARKEL – Liftmedia-P TFT indicator

Liftmedia
Indicators

With LiftMedia Designer software that has an advanced and flexible graphic interface, you can reshape your indicator in the way you want. You can arrange all settings such as stop writings, stop pictures, direction arrows, logo, background pictures, signal indicators, date, time, weather, audial announcements, music and video playing.

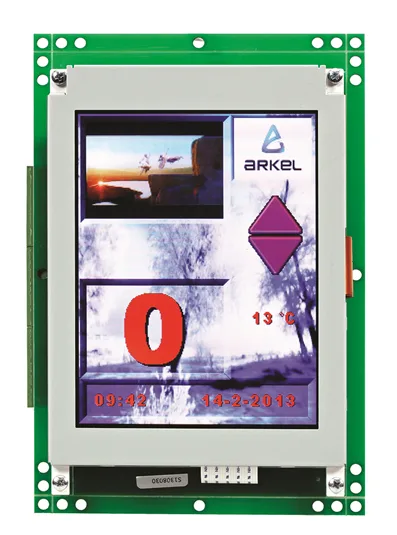

320×240 pixel 5.7 inch color TFT display
Video display (approximately 1/4 of the screen)
Play music at high quality
Audible floor and status announcements (overloaded, out of service, fire, etc.)
Ability to show stoppages, stop pictures, direction arrows, logo, background pictures and signal indicators (overload, out of service, fire, emergency rescue, etc.)
Ability to add shadow and 3-dimensional effect to all visual items
Background images can be changed with the set time
Date, time and temperature status indicators
User-friendly visual design program with flexible display design possibilities. Supports media file formats with mp3, Mpeg, Avi, WMV, Flv, mp4, m4u and wav extensions.
Support for image file formats with BMP, jpeg, gif and png extensions
User can change all screen, music and video elements
Can be used as cabin or floor display
Parallel signal (Gray, binary, Arkel M1 counter) and CANbus serial communication support (with ARL-500)
64 in parallel operation mode, 48 stops in CANbus serial communication mode
Work in a horizontal and vertical position (according to design)
Ability to set music and announcement volume separately
The screen backlight can be switched off after a set period of time (sleep mode feature)
Music can be turned off at set time
Programmable with SD card. When you copy your design onto the SD card and plug it into LiftMedia, the use will be ready
Unlimited alphabet support (Cyrillic, Greek, Arabic letters, etc.) in the screen design when using fonts in the operating system.
Can record music and video for hours with SD card included in the product. Option to expand capacity by SDHC card insertion
Ability to benefit from future additions via software update via SD card
General Features

LCD Type -> 5.7 inch Color TFT Display
Resolution -> 320 x 240 Pixels
Playing Music -> Available
Date and Time -> Available
Working Interface -> Parallel Signal CANbus Serial Communication (ARL-500)
Programming Type -> With SD Card
Visible Area (mm) Length × Width -> 115.2 x 86.4
Video Playback -> Available
Voice Announcement -> Available
Temperature -> Available
Working Position -> Horizontal, Vertical
Language Options -> Turkish and English
