ARKEL – LCD240X128A-S

LCD240X128
Indicators

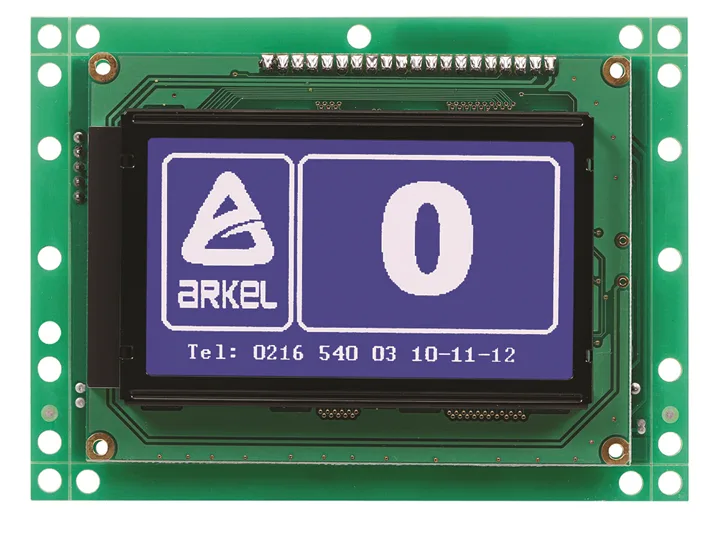

Arkel LCD240X128A-S digital elevator indicator

64 stop supports (Compatible with ARL-700 and Arcode CANbus system)
Can be used as cabin or floor display
Support for Gray code, Binary code, Arkel counter system, 7-segment display and CANbus (only with ARL-500 control system)
Programmable from 4-button on its own menu or from PC with LCD240128A Uploader software
Ability to program each individual image individually
Programmable moving / stationary arrow indication
Programmable moving / still subtitle
Programmable out-of-service and overload images
Programmable logo images
Can use characters such as -, B, L, Z for station names
Ability to save, change and restore settings made with computer software
Choose from among the pictures available in its library or use your own pictures
Signal partner can be used as positive or negative
Date and time display (only in CANbus mode with ARL-500 control system)
General Features

LCD Type -> Monochrome Graph
Resolution -> 240 x 128 Pixels
Playing Music -> Not Available
Date and Time -> Available (with ARL-500)
Working Interface -> Parallel signal CANbus Serial Communication (with ARL-500)
Programming Shape -> With PC Cable Connection
Visible Area (mm) Length × Width -> 114 mm x 64 mm
Video Playback -> Not Available
Voice Announcement -> Not Available
Temperature -> Not Available
Working Position -> Horizontal
