ARKEL – SP16 ARL500
Login to request quote

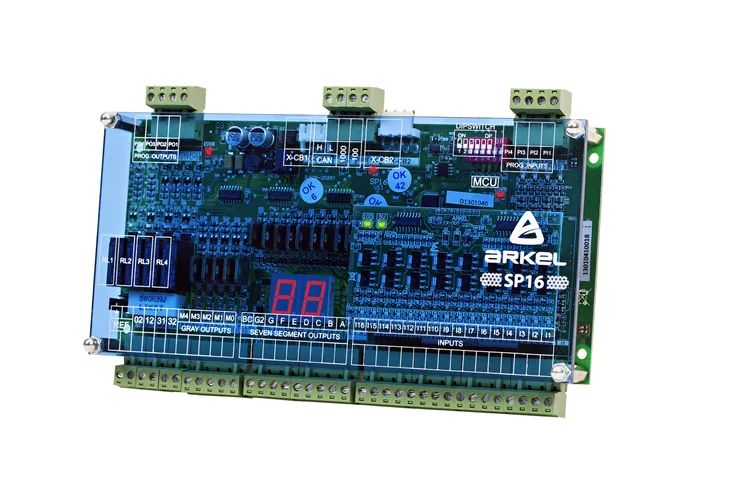

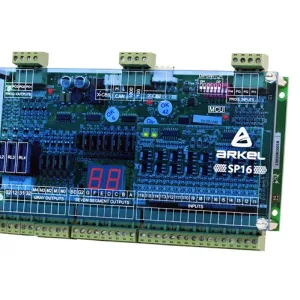

SP-16
SP16 card lets using control panels such as ARCODE or ARL500 that can work with serial installment in buildings with parallel networks. With one card, totally 16 floors in one-way and totally 9 floors in two-way are supported and more floor support can be provided by building SP16 cards as cascade. They can be used in existing parallel installments with 7-segments and grey code outputs.
Call button support for Single pick-up up to 16 stops and for double pick-up tup to 9 stops
7-Segment Exits (9 Exits) and 2×7-segment display
Gray Code Exits (5 Exits)
Predefined (out of service, busy, down and up direction) relay outputs (4 Pcs)
Work with ARL500 and ARCODE systems.
Easy programming with dip switch
General Features
Input Supply Voltage -> 24Vdc
Record Outputs -> Max. 200mA 24V
Gray Code Outputs -> Max. 200mA 24V
Dimensions (mm) -> 205 x 100 x 50
Maximum Power Consumption -> 1W Outputs Passive
7 Segment Outputs -> Max. 400mA 24V
Record Inputs -> Max. 10mA 24V
