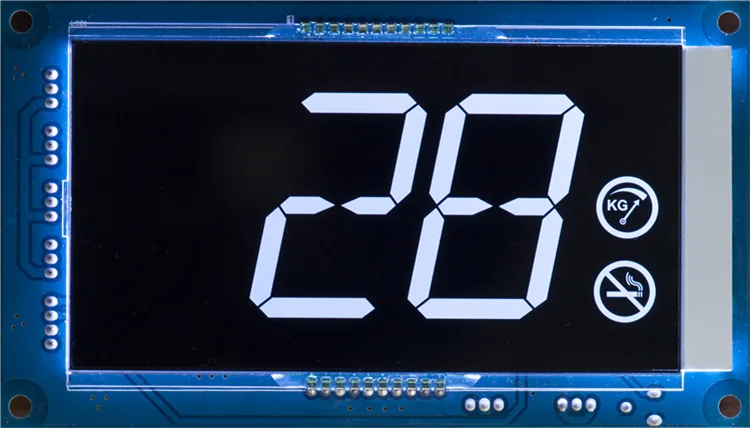

ARKEL – BC-LCDA
Login to request quote
BC-LCDA
Indicators
64 stop supports (Compatible with ARL-700 and Arcode CANbus system )
One or two-character stop names can be assigned to each stop. (With Arem)
Can be used as cabin or floor display
Horizontal or Vertical use
Programmable moving / stationary arrow indication
2 programmable inputs / 2 programmable outputs
Up & Down call button inputs and led outputs
Speaker output compatible with EN81-20 Standards (Gong and Button voice)
General Features
Board Dimensions -> 113×83
Visible Area (mm) Length × Width -> 72 mm x 40 mm
Working Interface -> CANbus Serial Communication (Arcode/ARL-700)
Language Preferences -> Available in all languages by uploading images
LCD Type -> Monochrome Graph
Resolution -> Resolution
Working Position -> Horizontal and Vertical
Display Pictograms -> Out of service, Overload, No smoking, Ability to upload bmp images with Arem for fire situations
