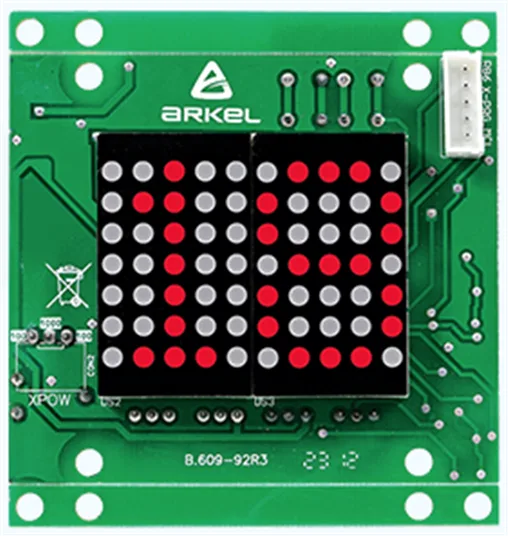

ARKEL – BC-D2XAR – Rood dotmatrix
Login to request quote
2X Dotmatrix
Indicators
Control of button sound
Programmable / updateable via CANbus
Sound can be adjusted for the gong using the trimpot labeled “Volume” on the cassette cards.
General Features
Dimensions (mm) -> 73×77×17 (73x64x17)
Weight (gr) -> 40
Operating Voltage -> 24VDC (18-30VDC) (from the X-CB1 and X-CB2 sockets)
Call Button Entry -> 2 Units
Visible Area (mm) Length × Width -> 46×30 (2 digits 30 mm display)
Operating Temperature -> 0-60˚C
Gong Output (X-SPE) -> 0,5 W
Programmable input-output socket Gong output -> 2 Units
